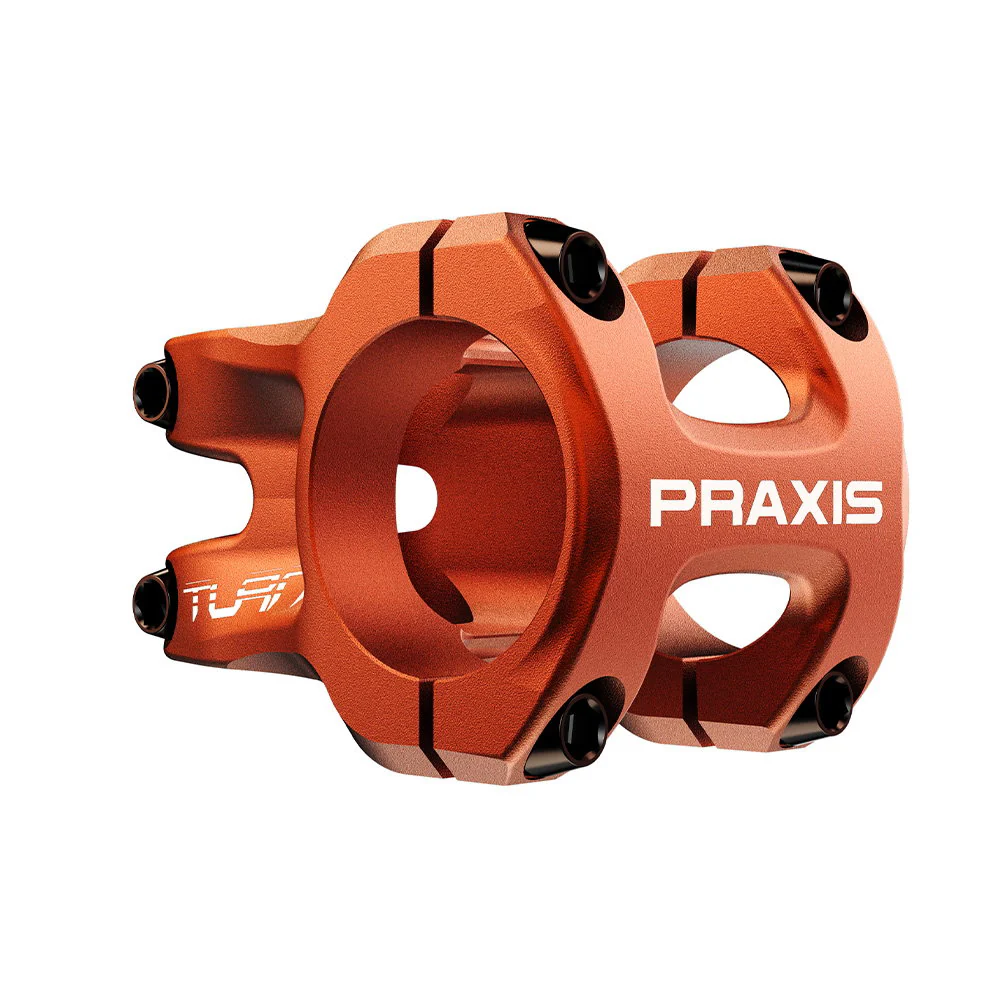

Praxis - Stem Turn 35 50mm - Orange

The new forged+CNC MTN stem is available in 31.8mm and 35mm Diameter. With 32mm, 40 and 50mm lengths to suit any rider's needs.

Stem Material:Forged and CNC | 6061-T6 Aluminium

Bolts: Stainless Steel Bolts

Colours: Black/Silver/Aqua/Orange (Red to follow)

Clamp Diameter: 31.8mm or 35mm

Length: 32mm, 40mm or 50mm

Steer Tube Diameter: 1 1/8in

Stack Height: 38mm

Clamp Width: 54mm

Rise: 0 deg

Weight 31.8mm Diameter: 32mm (131g) / 40mm (143g) / 50mm (160g)

Weight 35mm Diameter: 32mm (132g) / 40mm (146g) / 50mm (160g)

Rider Notes: 1. Install bar. Both Top/bottom bar clamp bolts tighten down leaving a small gap at all four bolts. Torque bolts to 6Nm 2. Install stem onto steerer, align and tighten top 2 steerer bolts. Torque bolts to 6Nm
